Motorsport Keypad

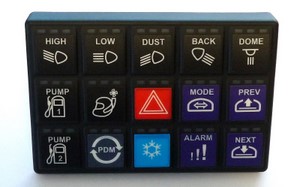

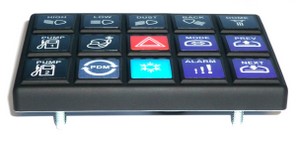

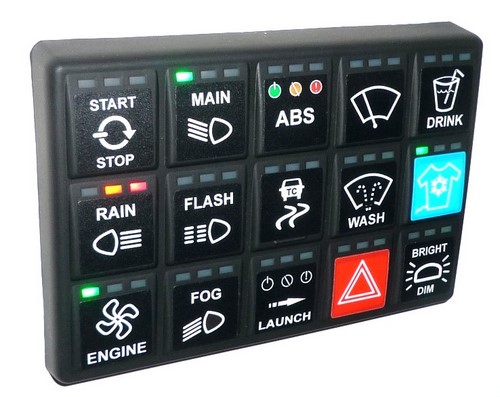

The RaceGrade Motorsport Keypad       is a fully customized keypad designed specifically for your vehicle. Each button features a custom graphic or symbol, which represents the function it controls. It will enhance the application and integration of MoTeC's PDM into any vehicle. The keypad also provides feedback via the 3 LED indicators on top of each button to inform the driver     of the status for each output of the MoTeC PDM. The keypad is backlit   with adjustable brightness to work equally as well at night as during the day.

Keypads are available in either 15 or 8 buttons configurations.

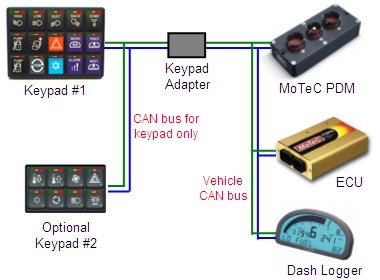

  Up to 30 buttons via multiple keypads may be connected to the vehicles CAN bus via the PDM Gateway adapter. This gateway translates all of the control messages to and from MoTeC's PDM and dash.


Features:
  • Small, lightweight & compact package
  • Rugged design for use in extreme environments
  • Backlit customize graphical symbols available
  • Real time feedback via LED indicators above each button
  • Simplify wiring, only 4 wires required for multiple buttons
  • Short circuit, reverse polarity protection
